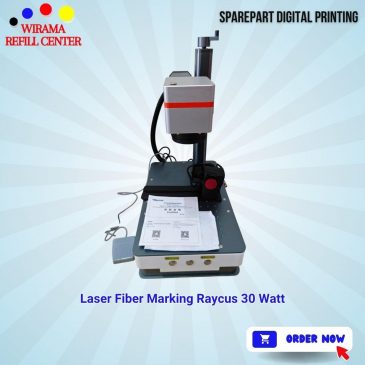

Laser Fiber Marking Raycus 30 Watt

Spesifikasi:
Laser type: Optical Fiber
Marking Speed: 8000mm/s
Positioning Speed: 10000mm/s
Small step response time: kurang lebih 0,4ms
Wavelength: 1064nm
Linearity: 99.9%
Long term drift (8 hours of continuous operation): < 0.5Rad
Gain Error:
Tracking error: <= 180us
Proportional drift: < 40PPM/°C
Lens damage threshold:
K9 matrix: 9.1J/cm^2
Si matrix: 10J/cm^2
Power supply and signal
input voltage: +- 15VDC
average operating current: 2.0A
Signal interface: figure XY2-100
Peak current: 15A
Operating temperature: 0°C – – 45°C
Position signal input proportional coefficient: 0.33V/°
Operating current, temperature, size:
Operating temperature: 0°C – – 45°C
Storage temperature: – 10°C – – + 60°C
X, Y lens center distance: 13.5mm
Maximum scanning angle:+- 15°
